| Lebar Terminal: | 10.2mm | Saat ini: | 76A |
|---|---|---|---|
| Voltase: | 600V | Pengupasan Panjang: | 10mm |
| Bahan: | Kuningan | Kelas Inflammability: | UL94, V-0 |
| Resistensi Kontak: | Kurang dari 8mΩ | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
| Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit | Jangkauan Kawat: | 24-6AWG |
| Cahaya Tinggi: | din rail mount terminal blocks,din rail terminals blocks |
||

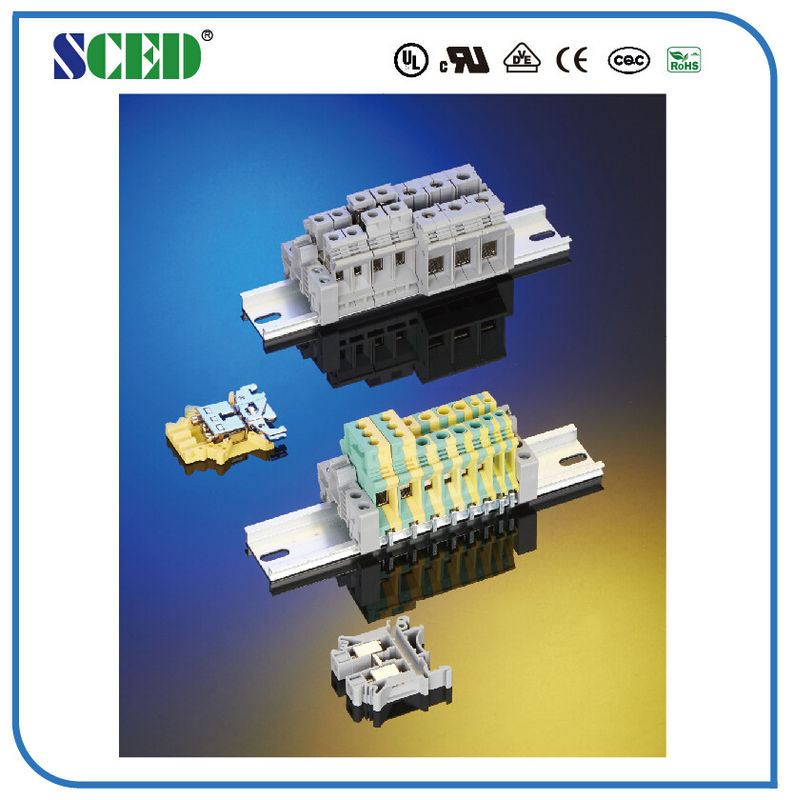

16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length
Detailed product Description:
Terminal width: 10.2mm, 600V 65A, AWG:24-6, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

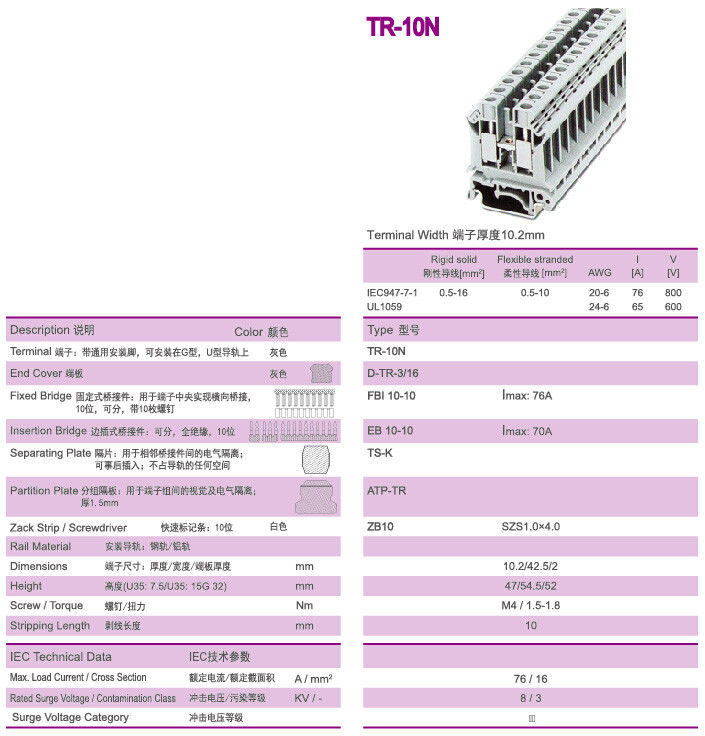

Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Grey |
TR-10N |
|
|
D-TR-3/16 |
|
|
FBI 10-10 Imax: 76A |
|
|
EB 10-10 Imax: 76A |
|
|
TS-K |
|
|
ATP-TR |
|
Zack Strip White |
ZB10 |
|
Screwdriver |
SZS 1.0×4.0 |
|
Rail Material |
aluminum |
|
Dimensions mm |
10.2/42.5/2 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
|
Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Stripping Length mm |
10 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section A / mm2 |
76 / 16 |
|
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
|
Surge Voltage Category |
Ⅲ |
