| Tempat asal: | Guangdong,China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CUL,CE,CQC and VDE etc. |
| Nomor model: | TR-16N-03 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.45-0.92 |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Lebar Terminal: | 12.1mm | Plastik: | PA66 |
|---|---|---|---|
| Saat ini: | 85A | Voltase: | 600V |
| Papan Konduksi: | Tembaga | pelapisan: | berlapis timah |
| Baut: | Baja | Resistensi Kontak: | Kurang dari 8mΩ |
| Jangkauan Kawat: | 4-20 AWG | Pengupasan Panjang: | 16mm |
| Cahaya Tinggi: | panel mount terminal block connector,pcb mount terminal blocks |
||

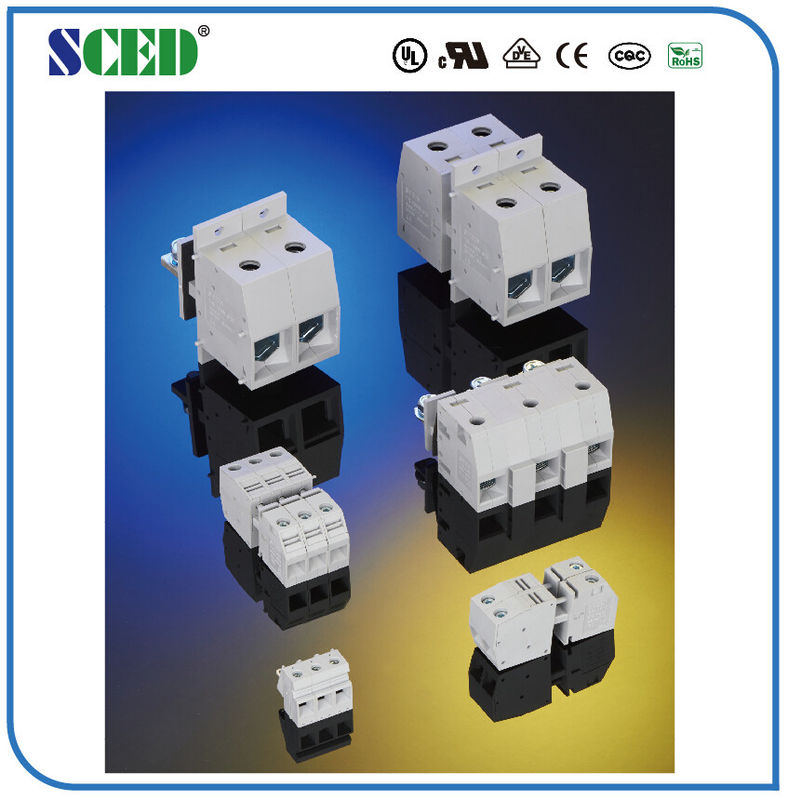

85A Panel Mount Terminal Block UL94-V0 600V 12.1mm Terminal Width
Detailed product Description:
Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available.
Applications:
1.They can be used on PCB, Frequency Converters, Server Site, Switch, Power Supply and Electric Lighting, 2. Besides Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..can be used as well.

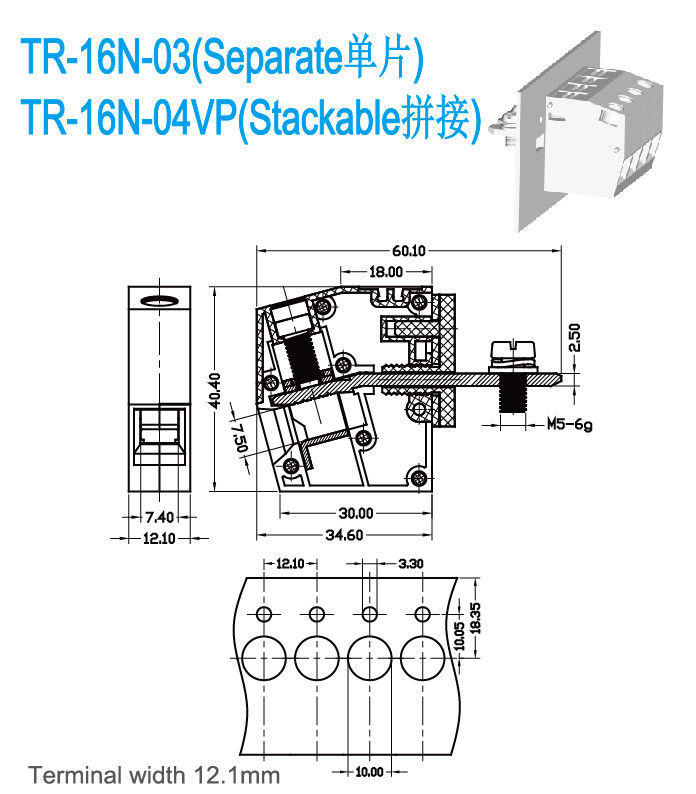

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 85 |
|
600 / 5 |
|
Wire Range AWG |
4-20 |
|
4-20 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 101 |
800 / 101 |
1000 / 101 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
16 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
16 |
||
|
Screw / Torque / lbf.in |
M5 / 22-25 |
||
ompetitive Advantage:
