Tempat asal: | Guangdong, China |
Nama merek: | SCED |
Sertifikasi: | CE,UL,CUL, CQC, VDE etc. |
Nomor model: | TR-6N-02 |
Kuantitas min Order: | 500 Piece/Pieces |
---|---|
Harga: | USD 0.015-0.035 |
Kemasan rincian: | Standard Inner box dimension: 168 x 134 x 47mm |
Waktu pengiriman: | 5-20 days |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Warna: | Abu-abu | Baut: | M4 |
---|---|---|---|
Bahan Isolasi: | PA66 | Kelas Inflammability: | UL94-V0 |
Penjepit Kandang: | Kuningan | pelapisan: | Berlapis nikel |
Lebar Terminal: | 10mm | Voltase: | 600V |
Saat ini: | 30A | Pengupasan Panjang: | 9mm |
Cahaya Tinggi: | wiring terminal block,feed through terminal blocks |

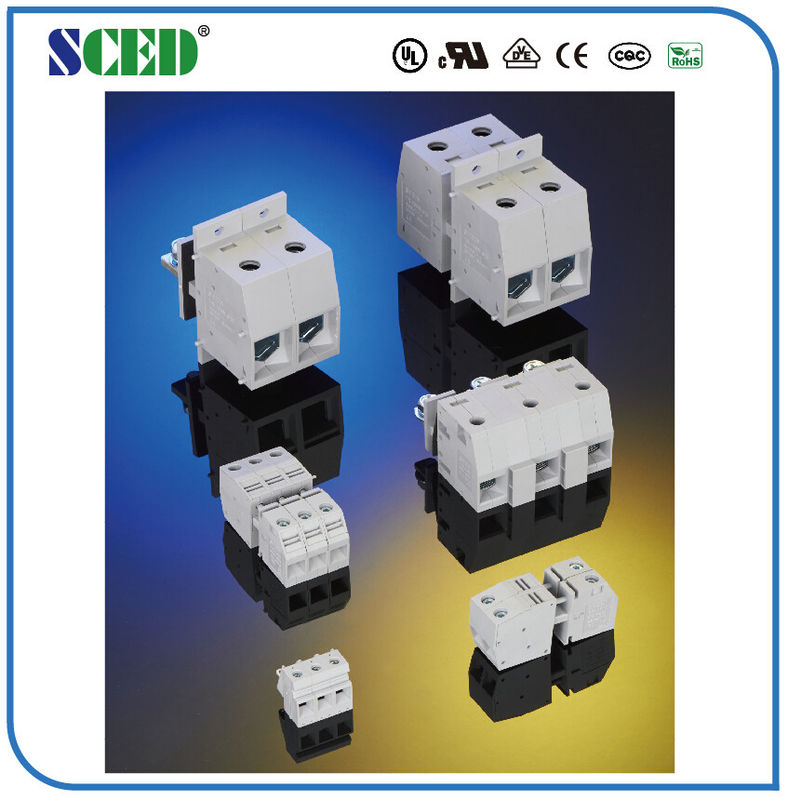

300V 50A PA66 Panel Mount Terminal Block 10mm Terminal Width
Detailed product Description:

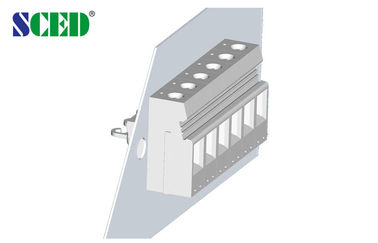

Pitch 10.0mm, 600V 50A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Applications:
They can be used in following fileds:
Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power,PCB, Frequency Converters, Server Site, Switch,Security, Medicine Equipment, Military, Elevator, etc..

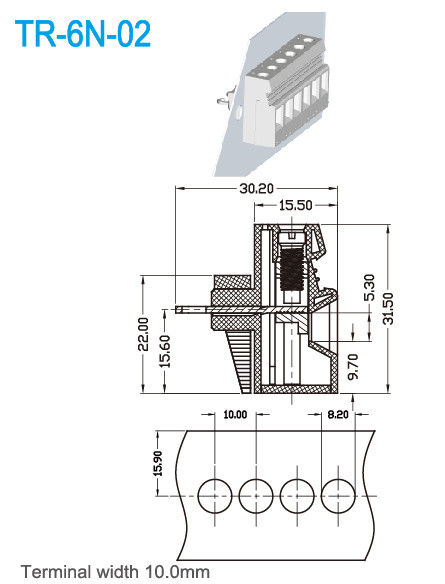

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 50 |
|
600 / 5 |
Wire Range AWG |
8-26 |
|
8-26 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
630 / 57 |
830 / 57 |
1000 / 57 |
Rated Surge Voltage KV |
6 |
6 |
6 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Conduction Board / Plating |
Brass / Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
9 |
||
Screw / Torque / lbf.in |
M4 / 10.6-13 |
Competitive Advantage:
