Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width

Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width

Produk - Panel Mount Terminal Block
  • Menyoroti

    panel mount terminal block connector

    ,

    pcb mount terminal blocks

  • Plastik
    PA66
  • Penjepit Kandang
    Baja
  • pelapisan
    Pelapisan nikel
  • Lebar Terminal
    15.1mm
  • Bahan Isolasi
    PA66
  • Saat ini
    75A
  • Voltase
    600V
  • Baut
    M5
  • Rentang Kawat
    2-8 AWG
  • Papan Konduksi
    Tembaga
  • Place of Origin
    Guangdong China
  • Nama merek
    SCED
  • Sertifikasi
    UL,CUL, CE, VDE etc.
  • Model Number
    TR-35N-03
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.57-1.24 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width

  • Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width
  • Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width
Dapatkan Harga Hubungi sekarang



Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width



Detailed product Description:



Pitch 15.1mm, 600V 115A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch

2.Power Supply, Electric Lighting

3.Industry Control, Automation, Rail Transportation

4.Communication, Electric Power, Security

5.Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 75



600 / 5

Wire Range                       AWG

2-8



2-8

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 125

800 / 125

1000 / 125

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

19

Screw / Torque                    / lbf.in

M5 / 22-25



Competitive Advantage:



  1. Stable good quality
  2. Resonable price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
  6. Good after-sales service

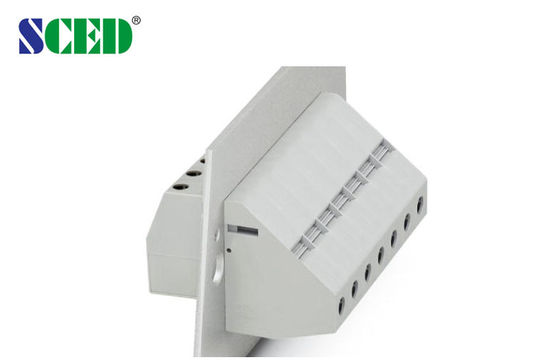

Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width 0
