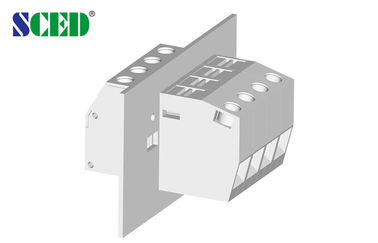

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A

Detail produk:

Place of Origin: Guangdong,China
Nama merek: SCED
Sertifikasi: CE,UL,CUL, CQC and VDE etc.
Model Number: TR-16N-02

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 500 Piece/Pieces
Harga: USD 0.45-0.92 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Hubungi sekarang
Detil Deskripsi produk
Terminal Width: 12.1mm Current: 85A
Voltage: 600V Wire Range: 4-20 AWG
Plastic: PA66 Inflammability Class: UL94-V0
Screw: M5 Torque: 22-25 lbf.in
Stripping Length: 16mm Wire Inlet: Right Angle



White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A



Detailed product Description:



Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Black. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 85



600 / 5

Wire Range                       AWG

4-20



4-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

800 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

16

Screw / Torque                    / lbf.in

M5 / 22-25





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.White 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85AWhite 12.10mm Through Panel Terminal Blocks Connection Brass 600v 85A
