Tempat asal: | Shenzhen, China |
Nama merek: | SCED |
Sertifikasi: | UL, CE |
Nomor model: | TP381H-01V |
Kuantitas min Order: | 500 |
---|---|
Harga: | Get latest price |
Kemasan rincian: | Standard Export Carton |
Waktu pengiriman: | 7-20 working days |
Syarat-syarat pembayaran: | T/T |
Menyediakan kemampuan: | 1KK poles each monthly |
Kawat Inlet: | Inlet kawat sudut kanan | Aplikasi: | PCB, Konverter Frekuensi, dll。 |
---|---|---|---|
Warna: | hijau | Nomor kontak: | Setiap tiang yang tersedia |
Nada: | 3.81mm | Populer saat ini: | 8A |
Tegangan pengenal: | 300V | Tipe: | Pasang Blok Terminal, Blok Terminal Pluggable |
Kata kunci: | Blok Terminal Wanita | Bahan: | PA66 |
Cahaya Tinggi: | power distribution terminal block,electric terminal block |

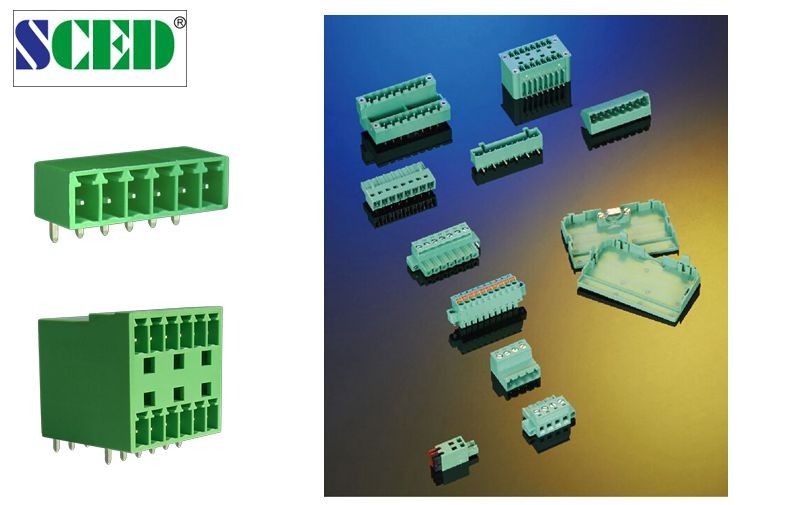

3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Description:
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

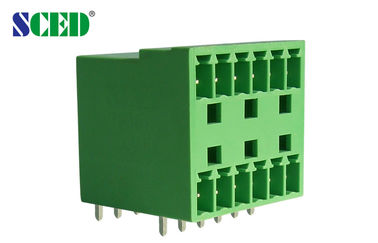

□Single Level; ■Double Levels; □Triple Levels
This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03,
TP381P-04
Standard color: Green. Other colors also available, please refer to below How to Order and select the
color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 8 |
|
|
IEC Technical Data |
|
|
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 8 |
160/8 |
320/8 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Terminal / Plating |
Brass / Tin Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
1.2 |
||
Pin Dimension mm |
0.8 x 0.8 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
