Tempat asal: | Shenzhen, China |
Nama merek: | SCED |
Sertifikasi: | UL, CE |
Nomor model: | TJ254-04 |
Kuantitas min Order: | 500 |
---|---|
Harga: | Get latest price |
Kemasan rincian: | Standard Export Carton |
Waktu pengiriman: | 7-20 working days |
Syarat-syarat pembayaran: | T/T |
Menyediakan kemampuan: | 1KK poles each monthly |
Mengetik: | Blok Terminal Pegas, Blok terminal nirsekrup, Blok Terminal Listrik | Nada: | 2.54mm |
---|---|---|---|
Nomor kontak: | 3P | Berbagai Wire: | 18-28 AWG |
Tegangan pengenal: | 150V | Populer saat ini: | 5A |
Warna: | abu-abu | Aplikasi: | PCB, dll. |
Bahan: | PA66 | Terminal: | Fosfor perunggu |
Cahaya Tinggi: | wiring terminal blocks,pcb spring terminal block |

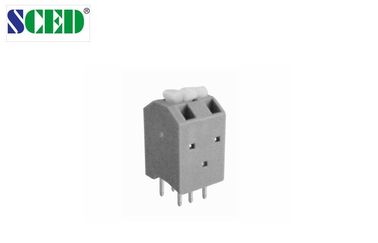

2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

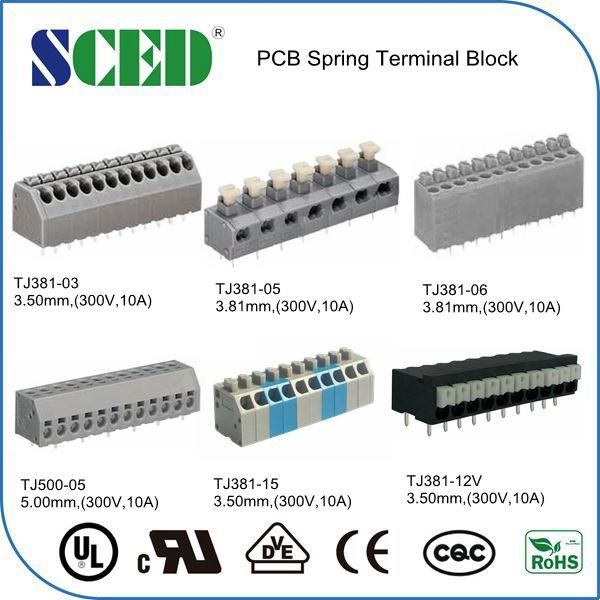

Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
150/5 |
|
300/5 |
Wire Range AWG |
18-28 |
|
18-28 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 5 |
250 / 5 |
400 / 5 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.0 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Spring / Plating |
Stainless Steel / - |
||
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.2 |
||
Stripping Length mm |
8-9 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
