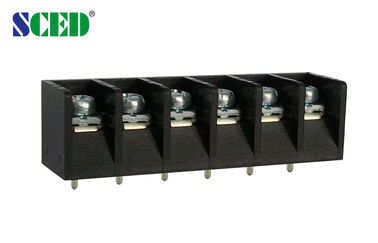

Right Angle Barrier Type Terminal Block Brass PBT 7.62mm 300v 15A

Right Angle Barrier Type Terminal Block Brass PBT 7.62mm 300v 15A

Right Angle Barrier Type Terminal Block Brass PBT 7.62mm 300v 15A

Detail produk:

Place of Origin: Guangdong,China
Nama merek: SCED
Sertifikasi: CE,UL,CUL,CQC,VDE etc.
Model Number: TB762-11-D1-T4

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 500 Piece/Pieces
Harga: USD 0.04-0.08 per pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Hubungi sekarang
Detil Deskripsi produk
Mengetik: Penghalang Warna: Hitam
tegangan: 300V Arus: 15A
Tiang: 2-22 tiang Plastik: PBT
Terminal: Kuningan Sekrup: M3
Perangsangan: UL94-V0 Nada: 7.62mm



Right Angle Barrier Type Terminal Block Brass PBT 7.62mm 300v 15A



Detailed product Description:



Pitch 7.62mm, 300V 15A, 2P-22P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black.

And we can also provide other colors as per customer's request, such as Grey, Green, Blue and Yellow etc.



Applications:

Usually our customer wil used our terminal blocks in the fileds of  PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

16-24



16-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 17

320 / 17

400 / 17

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Zinc plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



Competitive Advantage:



We can provide stable good quality products with competitiv price.

We have 12 years of experience in designing, manufacturing and marketing terminal blocks.

We have 10 main series and more than 1000 models for selection.

We can provide good service to our customers.



Right Angle Barrier Type Terminal Block Brass PBT 7.62mm 300v 15A
