Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles

Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles

    • Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles
    • Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles
  • Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TR30-03-BM0

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Type: Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block Pitch: 12.00mm
    Number Of Contacts: Any Poles Available Wire Range: 20-10 awg
    Rated Voltage: 600V Rated Current: 30A
    Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control



    Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles





    Applications:


    PCB, Frequency Converters, Server Site,

    Switch, Power Supply, Electric Lighting, Industry Control, Automation,

    Rail Transportation, Communication, Electric Power, Security,

    Medicine Equipment, Military, Elevator, etc..


    Spec.



    Pitch: 12mm

    Color: Black

    Type: Mount on PCB

    Poles: Any poles available



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks



    Specifications:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 30

    600 / 30



    Wire Range                                AWG

    20-10

    20-10



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    500 /30

    800 / 30

    1000 / 30

    Rated Surge Voltage                   KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    3.5

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Conduction Board/ Plating

    Brass /Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                  mm

    9-10

    Screw Torque                      mm

    M4 / 10.6-13





    Feature Advantage:



    1.The characteristics is can be combined to be different positions

    2. Products can be mounted into modular or PCB

    3. This series has good mechanical properties and electrical performance


    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand





    How to order:


    Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles

    Drawing Photo
    Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles

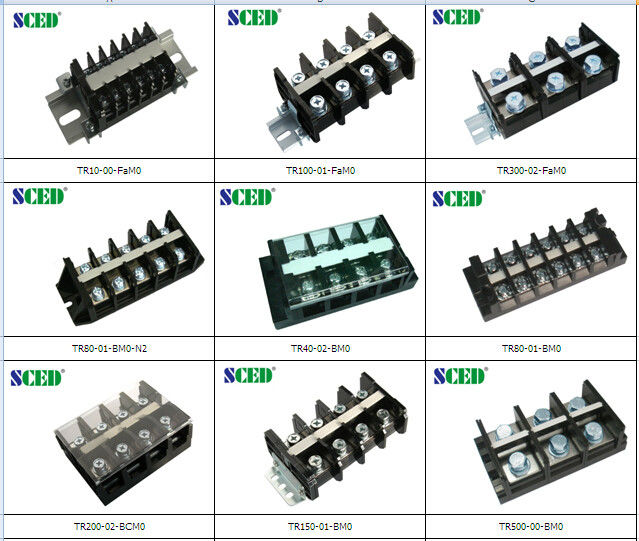

    Other series Photo



    Double Row Screw Panel Mount Terminal Block PCB Terminal Connector With Any Poles
