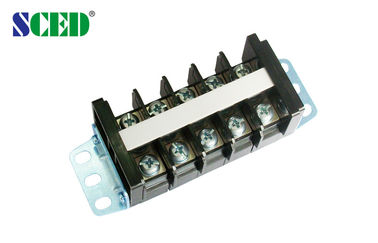

PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block

PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block

    • PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block
    • PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block
  • PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TR60-01-BM0

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Mengetik: Blok Terminal Pemasangan Panel, Blok terminal penghalang, Blok terminal daya, Blok terminal listrik Nada: 19.00mm
    Nomor kontak: Setiap tiang yang tersedia Berbagai Wire: 4-20 awg
    Tegangan pengenal: 600V Populer saat ini: 60A
    Warna: Hitam Aplikasi: PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri



    PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block


    Spec.


    1. Right angle wire inlet;
    2. Double levels;

    3. Pitch: 19.00mm

    4. Color: Black

    5. 600V/60A

    6. Wire range: 4-20AWG


    Applications:



    1. Mount on Din Rail

    2. Switch electronic

    3. Industrial Control

    4. Power supply

    5. Energy conservation


    Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 60

    600 / 60



    Wire Range                               AWG

    4-20

    4-20



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    800 / 60

    1000 / 60

    1000 / 60

    Rated Surge Voltage                     KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    14

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Terminal / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    12-15

    Screw / Torque                    / lbf.in

    M5 / 18-22





    Feature Advantage:



    1. Combined to be different positions

    2. Products can be mounted into Din rail

    3. This series has good mechanical properties and electrical performance


    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.


    How to order:
    PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block



    Drawing:


    PC M5 Panel Mount Screw Terminal Pitch 19.00mm 60 Amp Din Rail Terminal Block
