Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

    • Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range
    • Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range
  • Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TR30-02-BM0

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Type: Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block Pitch: 12.00mm
    Number Of Contacts: Any Poles Available Wire Range: 20-10 AWG
    Rated Voltage: 600V Rated Current: 30A
    Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
    Material: PC Screw: M4

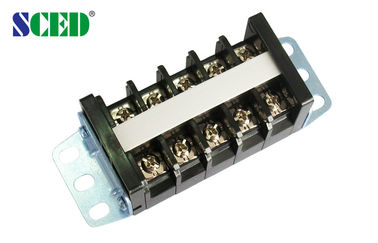

    Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

    Quick Detail:

    1. Combined to be different positions,
    2. Mounted into Din Rail Type
    3. Good mechanical properties and electrical performance,
    4. They are wire to wire type, we can mount them into different direction, to let the current front in and back out, top in and bottom out, one in one out or one in more out.

    Spec.

    1. They also can be marked with different labels, assembled with or without protection cover, added with or without all sorts of flat jumpers.
    2. Materials: Plastic housing is PC (UL94 V-0), operating temperature: -40℃~+120℃
                        Conduction board is high quality brass, screw using high quality steel.


    Applications:

    Frequency Converters,

    Server Site,
    Power Supply,

    Industry Control, Elevator, etc..

    Specifications:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 30

    600 / 30



    Wire Range                               AWG

    20-10

    20-10



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current               V/A

    630 /30

    800 / 30

    1000 / 30

    Rated Surge Voltage                    KV

    8

    8

    8

    Rated Connecting Capacity         mm2

    5.5

    Material



    Insulation Material / Inflammability Class

    PC / UL94, V-0

    Conduction Board/ Plating

    Brass /Nickel Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    Stripping Length                mm

    9-10

    Screw Torque                    mm

    M4 / 10.6-15



    Competitive Advantage:


    1. Product with CE RoHS

    2. Product with reasonable price

    3. 24 hours quick reply

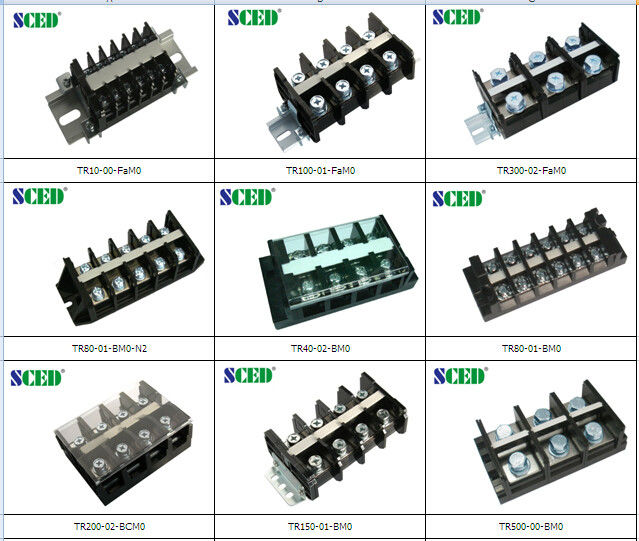

    4. Many series of Terminal blocks

    5. Supply OEM/ ODM

    6. Support R&D



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:
    Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range



    Drawing:

    Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range
