| Tempat asal: | Guangdong China |
| Nama merek: | SCED |
| Sertifikasi: | CE,UL,CUL,CQC,VDE etc. |
| Nomor model: | TP381P-03 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.074-0.148 Per pole |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Jenis: | Bagian wanita | Warna: | Hijau |
|---|---|---|---|
| Melempar: | 3.81mm | Saat ini: | 8A |
| Voltase: | 300V | Plastik: | PA66 |
| Resistensi Kontak: | Kurang dari 8mΩ | Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit |
| Kelas Inflammability: | UL94, V-0 | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
| Cahaya Tinggi: | electrical terminal blocks,plug in terminal block |
||

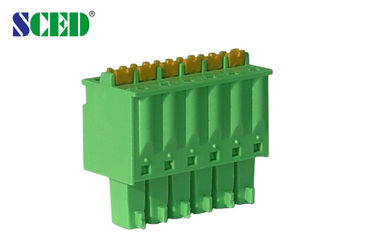

3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
Detailed product Description:
3.81mm 300v 8A Pluggable Terminal Block Plug Female Sockets 2P - 22P Brass
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05
Standard color: Green. Other colors also available, for example: Grey, Black, Yellow, Blue and White and so on.
Applications:
Normally our products will be used in below fileds:
1.PCB, Frequency Converters, Server Site, Switch
2.Power Supply, Electric Lighting, Industry Control
3.Automation, Rail Transportation, Communication, Electric Power
4.Security, Medicine Equipment, Military, Elevator
5. And other industries etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 8 |
|
|
|
Wire Range AWG |
16-30 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring Clamp |
Stainless Steel |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
Competitive Advantage:
We have 12 years of experience in designing, manufacturing and marketing termianl blocks. Stable good quality with competive price can be provided. We have 10 main series and more than 1000 models for selection.
