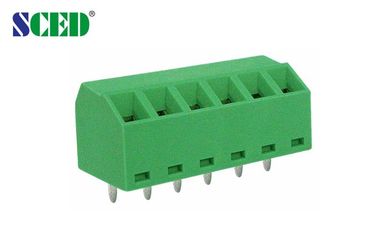

10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection

10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection

    • 10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection
    • 10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection
  • 10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TJ381-11

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 2KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Number of Contacts: 2P-28P Rated Current: 10A
    Rated Voltage: 300V Type: Screw clamp style



    10A PCB Screw Terminal Block Screw Clamp Sttyle 2 Pin - 28 Pin Electric Connection



    Detailed



    Pitch 3.81mm,

    300V 10A, 2P-28P,

    PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



    Spec.



    Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

    ■Single Deck;  □Double decks; Triple decks



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10





    Wire Range                       AWG

    16-24





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.0

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.2

    Stripping Length                    mm

    4-5

    Screw / Torque                    / lbf.in

    M2 / 1.8-2.0

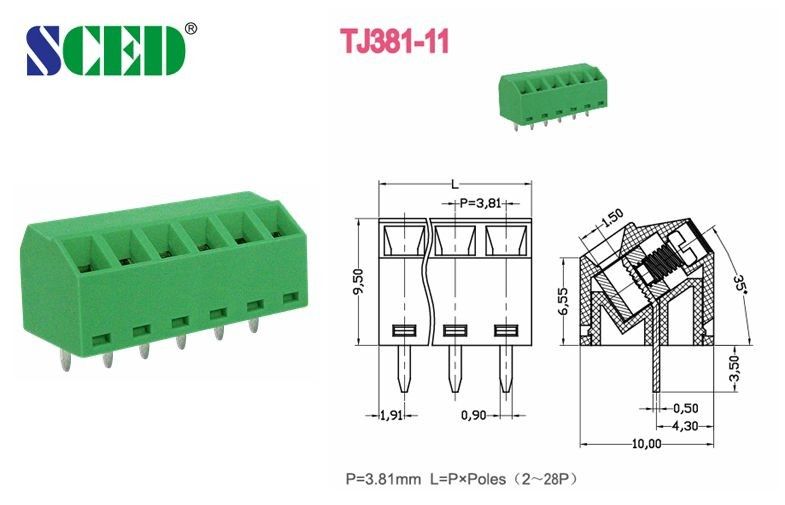

    Drawing:



    10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:

    10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response

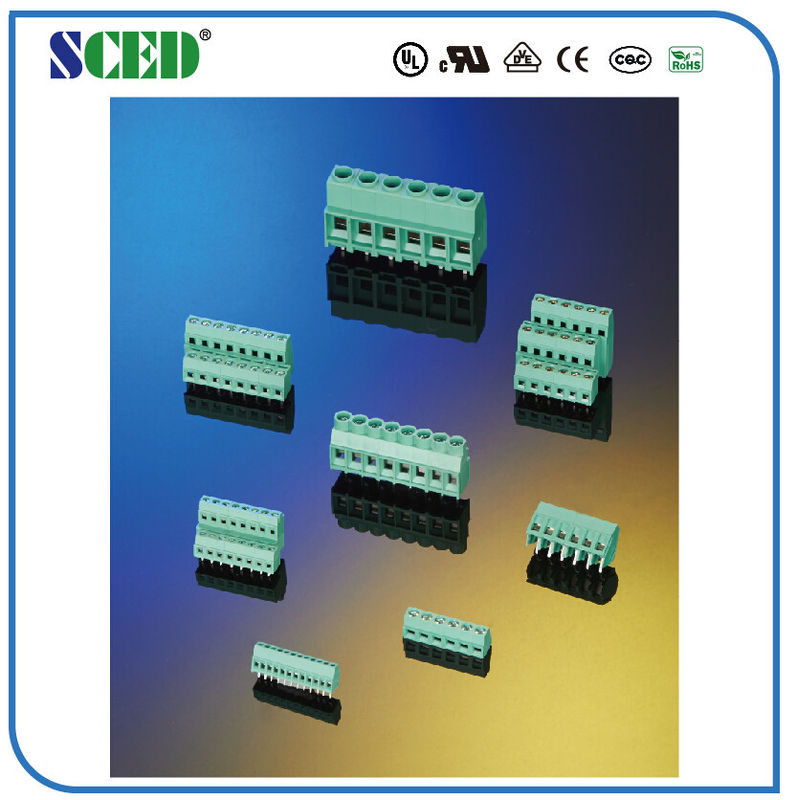

    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    10A PCB Screw Terminal Block Screw Clamp Style 2 Pin - 28 Pin Electric Connection



    Tag:

    PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer
