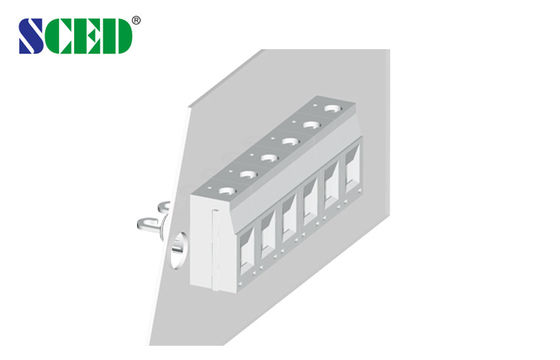

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

    • Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors
  • Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

    Detail produk:

    Place of Origin: Guangdong China
    Nama merek: SCED
    Sertifikasi: CE,UL,CUL,CQC,VDE etc.
    Model Number: TR-4N-02

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500 Piece/Pieces
    Harga: USD 0.081-0.162 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Kontak
    Detil Deskripsi produk
    Color: Grey Current: 30A
    Voltage: 300V Wire Inlet: Right Angle
    Pitch: 6.2mm Rated Surge Voltage: No abnormal within 1 minute
    Contact Resistance: Less than 8mΩ Inflammability Class: UL94, V-0
    Insulation Resistance: Above DC500V, 500MΩ Screw: M3
    Cahaya Tinggi:

    wiring terminal block

    ,

    feed through terminal blocks

    Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors



    Detailed product Description:



    Pitch 6.2mm, 300V 15A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 30



    300 / 10

    Wire Range                       AWG

    10-30



    10-30

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    500 / 32

    630 / 32

    1000 / 32

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    4

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    8

    Screw / Torque                    / lbf.in

    M3 / 5.3-7



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand.Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors 0
