Pitch 3.8mm Blok Terminal PCB, Double Level Clamp Euro Screw Terminal Block

Name: Pitch 3.8mm Blok Terminal PCB, Double Level Clamp Euro Screw Terminal Block
Brand: SCED
SKU: TJ381-01
Rating: 4.8 (193 reviews)

Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block

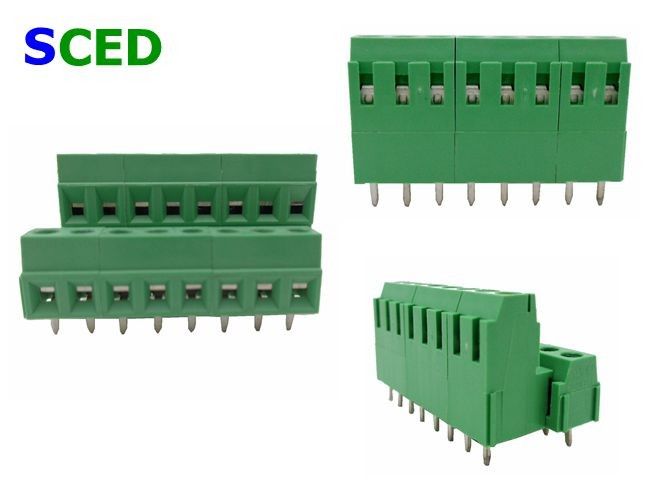

Gambar besar : Pitch 3.8mm Blok Terminal PCB, Double Level Clamp Euro Screw Terminal Block

Detail produk:

Tempat asal:	Shenzhen, Republik Rakyat Cina
Nama merek:	SCED
Sertifikasi:	UL, CE
Nomor model:	TJ381-01

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	Get latest price
Kemasan rincian:	Karton kemasan ekspor standar
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	Tiang 1KK masing-masing bulanan

Kontak

Detil Deskripsi produk

Mengetik:	PCB	Nada:	3.81mm
\|\|	300V	Nom.Current:	10A
Berbagai Wire:	16-24 A .WG	Bahan Isolasi:	PA66
Cahaya Tinggi:	konektor terminal blok PCB , blok terminal mount PCB

Pitch 3.8mm Blok Terminal PCB, Double Level Clamp Euro Screw Terminal Block

Parameter :

Data Teknis UL	B	C	D
Tegangan Terukur / Arus V / A	300/10
Rentang kabel AWG	16-24
Data Teknis IEC
Overvoltage Kategori	Ⅲ	Ⅲ	Ⅱ
Kelas Kontaminasi	3	2	2
Tegangan Terukur / Arus V / A	160/10	200/10	400/10
Nilai Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm ²	1.0
Bahan
Bahan Isolasi / Kelas Inflamabilitas	PA66 / UL94, V-0
Clamp Cage / Plating	Kuningan / nikel disepuh
Terminal / Plating	Kuningan / timah disepuh
Screw / Plating	Baja / Seng Disepuh
Data yang lain
PCB Hole Diameter mm	φ1.3
Panjang pengupasan mm	4-5
Screw / Torque / lbf.in	M2 / 1.8-2.0

Keunggulan kompetitif:

Kualitas bagus
Harga bersaing
Respon cepat
Berbagai produk untuk seleksi
Fleksibel untuk merancang bagian yang tepat sesuai permintaan pelanggan

Aplikasi:

PCB, Konverter Frekuensi, Situs Server, Switch, Power Supply, Penerangan Listrik, Kontrol Industri, Otomasi, Transportasi Kereta, Komunikasi, Tenaga Listrik, Keamanan, Peralatan Kedokteran, Militer, Elevator, dll.

Menggambar Spesifikasi

TJ381-01
